BRAVOLL® PTH-SX

DESCRIPTION

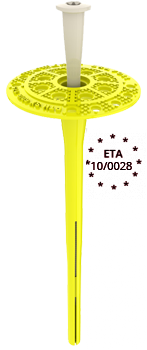

Screw-in insulation anchor with plastic screw for fixing all popular types of insulation boards in external wall insulation systems (ETICS). Suitable for surface and countersunk installation.

SUITABLE FOR

A B C D E
concrete

solid bricks

hollow bricks light-weight concrete aerated concrete

FEATURES

  • Approved for all categories of base materials (acc. to ETAG)
  • High pull-out values – reduced number of anchors per m², economical
  • No thermal transmission
  • Special collapse zone in the anchor body for an easier setting of the anchor plate into the insulation material
  • Particularly suitable for difficult and brittle substrates
  • Preassembled anchor for quicker installation
  • Can be installed flush or countersunk thanks to the double-sided setting tool BRAVOLL® MPS
  • Special plate surface for optimal render adhesion
  • Can be used in connection with the extension washers BRAVOLL® IT PTH

TECHNICAL DATA

  • European Technical Approval: ETA 10/0028
  • Technical guidelines: ETAG 014
  • Base material categories acc. to ETAG014: A, B, C, D, E
  • Anchor diameter: 8 mm
  • Anchor plate diameter: 60 mm
  • Drilling diameter: 8 mm
  • Minimum embedment: 35 mm (55mm)
  • Maximum embedment: 70 mm
  • Minimum drilling depth: 45-50 mm (65-70mm)
  • Setting tool: MPS (Torx 30)
  • Point thermal transmission χ: 0.000 W/K
  • Anchor plate load resistance: 1.5 kN
  • Anchor plate stiffness: 0.7 kN/mm

TECHNICAL FEATURES

Base material categories



Description

Charakteristic load resistance NRk (kN)

A

Concrete C12/15

1.2

A

Concrete C16/20 – C50/60

1.2

B

Solid bricks

1.2

B

Solid sand-lime bricks

1.2

B

Hollow blocks

1.2

C

Hollow bricks

0.6

C

Hollow bricks acc. to ÖNORM B6124

0.9

D

Lightweihgt concrete

0.9

E

Aerated concrete

0.5

Minimum edge distance Cmin (mm)

100

Minimum spacing Smin (mm)

100

Minimum thickness of member h (mm)

100

LENGTH RANGE

BRAVOLL® Product type

Code

Total length mm

Pcs per carton

Pcs per pallet

PTH-SX 60/8-135

11609

135

200

7,200

PTH-SX 60/8-155

11610

155

200

7,200

PTH-SX 60/8-175

11611

175

100

4,200

PTH-SX 60/8-195

11612

195

100

4,200

PTH-SX 60/8-215

11613

215

100

4,200

PTH-SX 60/8-235

11614

235

100

3,600

PTH-SX 60/8-255

11615

255

100

3,600

ANCHOR LENGTH CALCULATION

BRAVOLL® Product type

Total length La (mm)

Max. ins. thickness hd (mm)

Max. ins. thickness hd (mm)

Max. ins. thickness hd (mm)

Max. ins. thickness hd (mm)





Newbuild 1)

Renovation 2)

Newbuild 3)

Renovation 4)

Base material categories



A, B, C, D

E

PTH-SX 60/8-135

135

90

70

70

50

PTH-SX 60/8-155

155

110

90

90

70

PTH-SX 60/8-175

175

130

110

110

90

PTH-SX 60/8-195

195

150

130

130

110

PTH-SX 60/8-215

215

170

150

150

130

PTH-SX 60/8-235

235

190

170

170

150

PTH-SX 60/8-255

255

210

190

190

170

  • 1) for 35mm embedment and 10 mm mortar glue (a2)
  • 2) for 35mm embedment, 20 mm old render (a1) and 10 mm mortar glue (a2)
  • 3) for 55mm embedment and 10 mm mortar glue (a2)
  • 4) for 55mm embedment, 20 mm old render (a1) and 10 mm mortar glue (a2)
