BRAVOLL^® PTH-KZ

DESCRIPTION

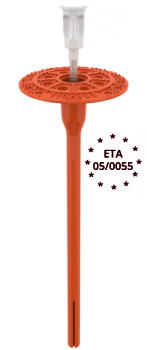

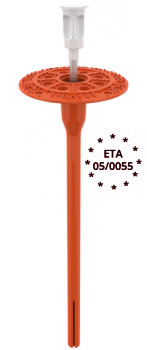

Hammer-in insulation anchor with steel pin for fixing expanded polystyrene (EPS) and mineral wool insulation boards in external wall insulation systems (ETICS).

SUITABLE FOR

A	B	C	D

concrete	solid bricks	hollow bricks	lightweight concrete

FEATURES

High pull-out values – lower quantity of anchors per m²
Galvanized steel pin with plastic head moulding for limited thermal transmission
Quick and easy setting through insulation materials
Suitable for high insulation board thicknesses (up to 280mm)
Pre-assembled anchor for quicker installation
Low embedment depth and diameter 8 drilling for quicker setting
Specific plate surface for optimum render adhesion
Can be used in connection with BRAVOLL^® IT PTH extension washers

TECHNICAL DATA

European Technical Approval: ETA 05/0055
Technical guidelines: ETAG 014
Base material categories acc. to ETAG014: A, B, C, D
Anchor diameter: 8 mm
Washer diameter: 60 mm
Drilling diameter: 8 mm
Minimum embedment: 25 mm
Minimum drilling depth: 35-40 mm
Point thermal transmission χ: 0.002 W/K
Anchor plate load resistance: 2.1 kN
Anchor plate stiffness: 0.7 kN/mm

TECHNICAL FEATURES

Base materials	Description	Charakteristic load resistance N_rk (kN)
A	Concrete C12/15	0.7
A	Concrete C16/20 – C50/60	0.9
B	Solid bricks	0.9
B	Solid sand-lime bricks	0.9
B	Hollow blocks	0.9
C	Hollow bricks	0.3
C	Hollow bricks acc. to ÖNORM B6124	0.5
D	Lightweight concrete	0.9
Minimum edge distance C_min (mm)		100
Minimum spacing S_min (mm)		100
Minimum thickness of member h (mm)		100

LENGTH RANGE

BRAVOLL^® Product type	Code	Total length mm	Pcs per carton	Pcs per pallet
PTH-KZ 60/8-75	10423	75	200	16,800
PTH-KZ 60/8-95	11352	95	200	8,400
PTH-KZ 60/8-115	11353	115	200	8,400
PTH-KZ 60/8-135	11766	135	200	7,200
PTH-KZ 60/8-155	11355	155	200	7,200
PTH-KZ 60/8-175	11769	175	100	4,200
PTH-KZ 60/8-195	11415	195	100	4,200
PTH-KZ 60/8-215	11416	215	100	4,200
PTH-KZ 60/8-235	11417	235	100	3,600
PTH-KZ 60/8-255	11360	255	100	3,600
PTH-KZ 60/8-275	11361	275	100	3,600
PTH-KZ 60/8-295	10434	295	100	3,600

ANCHOR LENGTH CALCULATION

BRAVOLL^® Product type	Total length L_a (mm)	Max. ins. thickness h_d (mm)	Max. ins. thickness h_d (mm)
		Newbuild ¹⁾	Renovation ²⁾
Base material categories		A, B, C, D
PTH-KZ 60/8-75	75	40	-
PTH-KZ 60/8-95	95	60	40
PTH-KZ 60/8-115	115	80	60
PTH-KZ 60/8-135	135	100	80
PTH-KZ 60/8-155	155	120	100
PTH-KZ 60/8-175	175	140	120
PTH-SKZ 60/8-195	195	160	140
PTH-KZ 60/8-215	215	180	160
PTH-KZ 60/8-235	235	200	180
PTH-KZ 60/8-255	255	220	200
PTH-KZ 60/8-275	275	240	220
PTH-KZ 60/8-295	295	260	240
