BRAVOLL® IT PTH
DESCRIPTION

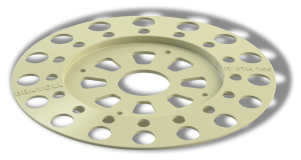

Plastic washer for the extension of insulation anchor plates. The washer is made of glass fibre reinforced polyamide, and is suitable for the fixing of mineral wool insulation boards in external wall insulation systems (ETICS).
Compatible with:
- PTH-S 60/8
- PTH-SX 60/8
- PTH-KZ 60/8
- PTH 60/8
- PTH 60/10
- TIT 60/5-20
FEATURES
- compatible with all BRAVOLL® PTH insulation anchors
- the wide surface of the washer increases the pull-through values of the fixed insulation material boards
- the washer plate geometry ensures the good adhesion of the gluing mortar
TECHNICAL DATA
- Diameter dp: 100 mm and 140 mm
- Material: glass fibre reinforced polyamide
TECHNICAL FEATURES
|
BRAVOLL® Product type |
Code |
Washer diameter dp (mm) |
Qty per carton (pcs) |
|
IT PTH 100 |
10087 |
100 | 100 |
|
IT PTH |
11190 | 140 | 100 |
TDS_IT_PTH_washers.pdf
