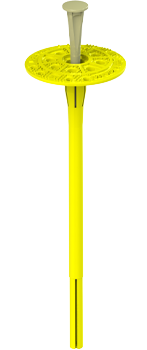

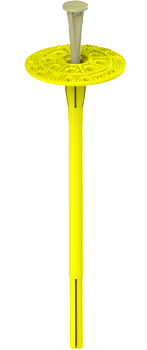

BRAVOLL^® PTH-X

DESCRIPTION

Plastic nail hammer-in anchor for fixing explanded polystyrene (EPS) insulation boards in external wall systems (ETICS).

SUITABLE FOR

A	B	C	D

concrete	solid bricks	hollow bricks	lightweight concrete

FEATURES

Special collapse zone in the anchor body for an easier setting of the anchor plate into the insulation material
Low embedment depth
High load resistance
No thermal transmission
Special plate surface for optimal render adhesion
Preassembled anchor for quicker installation

TECHNICAL DATA

European Technical Approval: ETA 13/0951
Technical guidelines: ETAG 014
Base material categories acc. to ETAG014: A, B, C, D
Washer diameter: 60 mm
Drilling diameter: 8 mm
Minimum embedment: 35 mm
Minimum drilling depth: 70 mm
Point thermal transmission χ: 0.000 W/K
Anchor plate load resistance: 1.5 kN
Anchor plate stiffness: 0.96 kN/mm

TECHNICAL FEATURES

Base materials		Description	Characteristic load resistance N_Rk (kN)
A		Concrete C12/15	0.6
A		Concrete C16/20 – C50/60	0.75
B		Solid bricks	0.75
B		Solid sand-lime bricks	0.75
B		Hollow blocks	0.6
C		Hollow bricks	0.5
C		Hollow bricks acc. to ÖNORM B6124	0.4
D		Lightweight concrete	0.5
Minimum edge distance C_min (mm)			100
Minimum spacing S_min (mm)			100
Minimum thickness of member h (mm)			100

LENGTH RANGE

BRAVOLL^® Product type	Code	Total length mm	Pcs per carton	Pcs per pallet
PTH-X 115	12228	115	200	8.400
PTH-X 135	12077	135	200	7.200
PTH-X 155	12078	155	200	7.200
PTH-X 175	12079	175	100	4.200
PTH-X 195	12080	195	100	4.200
PTH-X 215	12081	215	100	4.200
PTH-X 235	12082	235	100	3.600

ANCHOR LENGTH CALCULATION

BRAVOLL^® Product type	Total length L_a (mm)	Max. ins. thickness h_d (mm)	Max. ins. thickness h_d (mm)
		Newbuild ¹⁾	Renovation ¹⁾
Base material categories		A, B, C, D
PTH-X 115	115	70	50
PTH-X 135	135	90	70
PTH-X 155	155	110	90
PTH-X 175	175	130	110
PTH-X 195	195	150	130
PTH-X 215	215	170	150
PTH-X 235	235	190	170

38-animace-pth-x.html?jazyk=en

ETA_130951_PTH_X_GB.pdf (5.4MB)

EN_TL_1805_PTH_X.pdf (1.1MB)
