PTH-S

BRAVOLL® PTH-S

DESCRIPTION

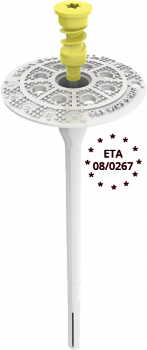

Screw-in insulation anchor with steel screw for the mechanical fixing of the most common insulation materials in external wall insulation systems (ETICS). Suitable for surface and countersunk installation.


SUITABLE FOR

A B C D E
concrete

solid bricks

hollow bricks lightweight concrete aerated concrete

FEATURES

  • Universal anchor – approved and certified for all types of building materials (acc. to ETAG)
  • High pull-out values – Optimal anchor quantity per m²
  • Very wide length range (from 95 do 475mm) for fixing high thicknesses of insulation material.
  • Galvanized steel screw with plastic head moulding for limited thermal bridge
  • Quick and easy setting through the insulation material
  • Pre-assembled anchor for quick installation
  • Low embedment depth and diameter 8 drilling for quicker setting
  • Can be installed flush or countersunk thanks to the double-sided setting tool BRAVOLL® MPS
  • Can be used in connection with the extension washers BRAVOLL® IT PTH, BRAVOLL® ZT and BRAVOLL® ZP

TECHNICAL DATA

  • European Technical Approval: ETA 08/0267
  • Technical guidelines: ETAG 014
  • Base material categories acc. to ETAG014: A, B, C, D, E
  • Anchor diameter: 8 mm
  • Washer diameter: 60 mm
  • Drilling diameter: 8 mm
  • Minimum embedment: 25 mm (65mm)
  • Minimum drilling depth: 35-40 mm (75-80mm)
  • Setting tool: MPS (Torx 30)
  • Point thermal transmission χ: 0.002 W/K
  • Anchor plate load resistance: 2.6 kN
  • Anchor plate stiffness: 0.9 kN/mm

TECHNICAL FEATURES

Base materials



Description

Characteristic load resistance NRk (kN)

A

Concrete C12/15

0.9

A

Concrete C16/20 – C50/60

1.5

B

Solid bricks

1.5

B

Solid sand-lime bricks

1.2

B

Hollow blocks

1.5

C

Hollow bricks

0.75

C

Hollow bricks acc. to ÖNORM B6124

0.6

D

Lightweight concrete

1.5

E

Aerated concrete

0.75

Minimum edge distance Cmin (mm)

100

Minimum spacing Smin (mm)

100

Minimum thickness of member h (mm)

100

LENGTH RANGE

BRAVOLL® Product type

Code Total length mm Pcs per carton Pcs per pallet

PTH-S 95

10598 95 200 8,400

PTH-S 115

10599 115 200 8,400

PTH-S 135

10600 135 200 7,200

PTH-S 155

10601 155 200 7,200

PTH-S 175

11624 175 100 4,200

PTH-S 195

10603 195 100 4,200

PTH-S 215

10604 215 100 4,200

PTH-S 235

10605 235 100 3,600

PTH-S 255

10606 255 100 3,600

PTH-S 275

11195 275 100 3,600

PTH-S 295

11497 295 100 3,600

PTH-S 315

11498 315 100 3,600

PTH-S 335

11499 355 100 3,600

PTH-S 355

11500 355 100 3,600



ANCHOR LENGTH CALCULATION

BRAVOLL® Product type

Total length La (mm)

Max. ins. thickness hd (mm)

Max. ins. thickness hd (mm)

Max. ins. thickness hd (mm)

Max. ins. thickness hd (mm)





Newbuild 1)

Renovation 2)

Newbuild 3)

Renovation 4)

Base material categories



A, B, C, D

E

PTH-S 95

95

60

40

-

-

PTH-S 115

115

80

60

40

-

PTH-S 135

135

100

80

60

40

PTH-S 155

155

120

100

80

60

PTH-S 175

175

140

120

100

80

PTH-S 195

195

160

140

120

100

PTH-S 215

215

180

160

140

120

PTH-S 235

235

200

180

160

140

PTH-S 255

255

220

200

180

160

PTH-S 275

275

240

220

200

180

PTH-S 295

295

260

240

220

200

PTH-S 315

315

280

260

240

220

PTH-S 335

335

300

280

260

240

PTH-S 355

355

320

300

280

260

PTH-S 375

375

340

320

300

280

PTH-S 395

395

360

340

320

300

PTH-S 415

415

380

360

340

320

PTH-S 435

435

400

380

360

340

PTH-S 455

455

420

400

380

360

PTH-S 475

475

440

420

400

380

  • 1) for 25mm embedment and 10 mm mortar glue (a2)
  • 2) for 25mm embedment, 20 mm old render (a1) and 10 mm mortar glue (a2)
  • 3) for 65mm embedment and 10 mm mortar glue (a2)
  • 4) for 65mm embedment, 20 mm old render (a1) and 10 mm mortar glue (a2)
