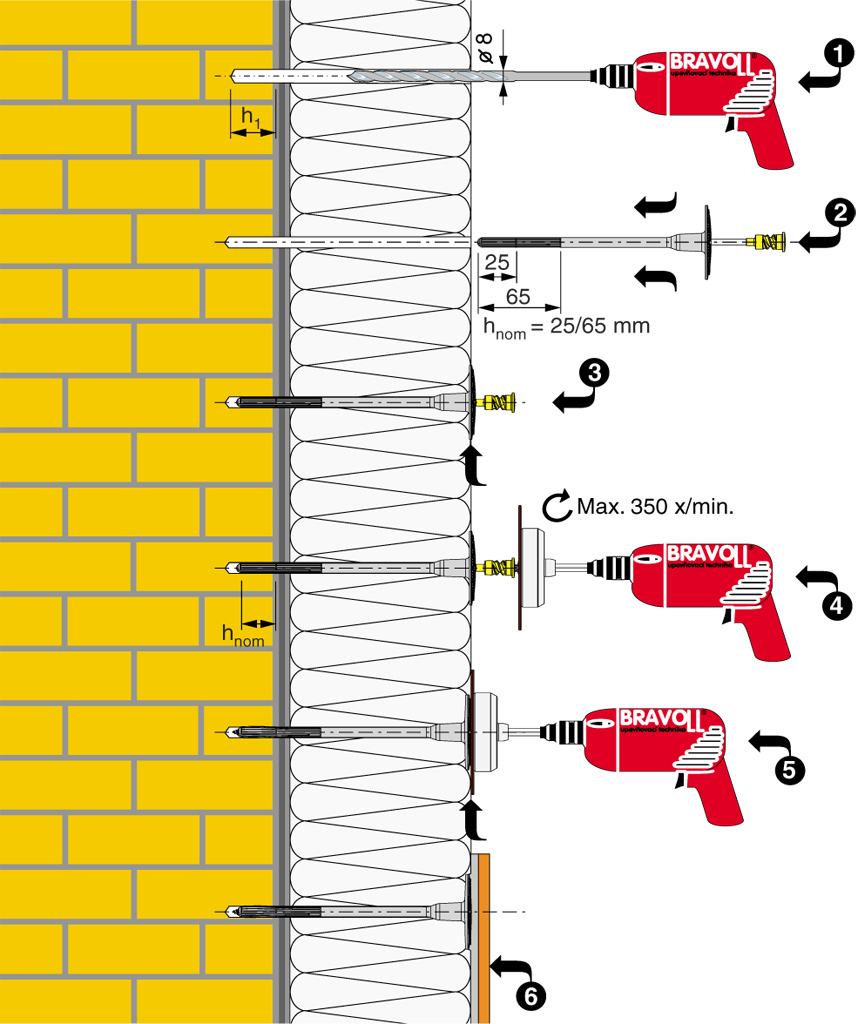

SURFACE INSTALLATION PTH-S

Insert the anchor into the predrilled hole, ensure the washer is in contact with the insulation material. If necessary, slightly push the anchor with the screwdriver.
If the anchor setting is difficult, it probably means that the used drill bit is worn (the drilled diameter is too small or the dust remains inside the hole). It is then necessary to use a new drill bit or better clean the hole. Hollow bricks and cellular concrete should only be drilled without hammering (ideally with a specially designed drill bit).
The installation should be performed with an electric screwdriver (maximum 350 rpm, ideally with electronic regulator) and the setting tool BRAVOLL MPS (Torx 30).
Stop screwing when the washer becomes flush or between 0 and 2 mm below the surface of the insulation material.
Within 6 weeks the anchors should be covered by the other ETICS components (for UV protection).
When leveling out surface unevenness, make sure to respect the minimum embedment.
Installation must be done at a temperature >0°C.

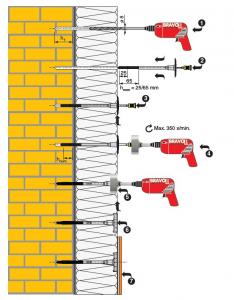

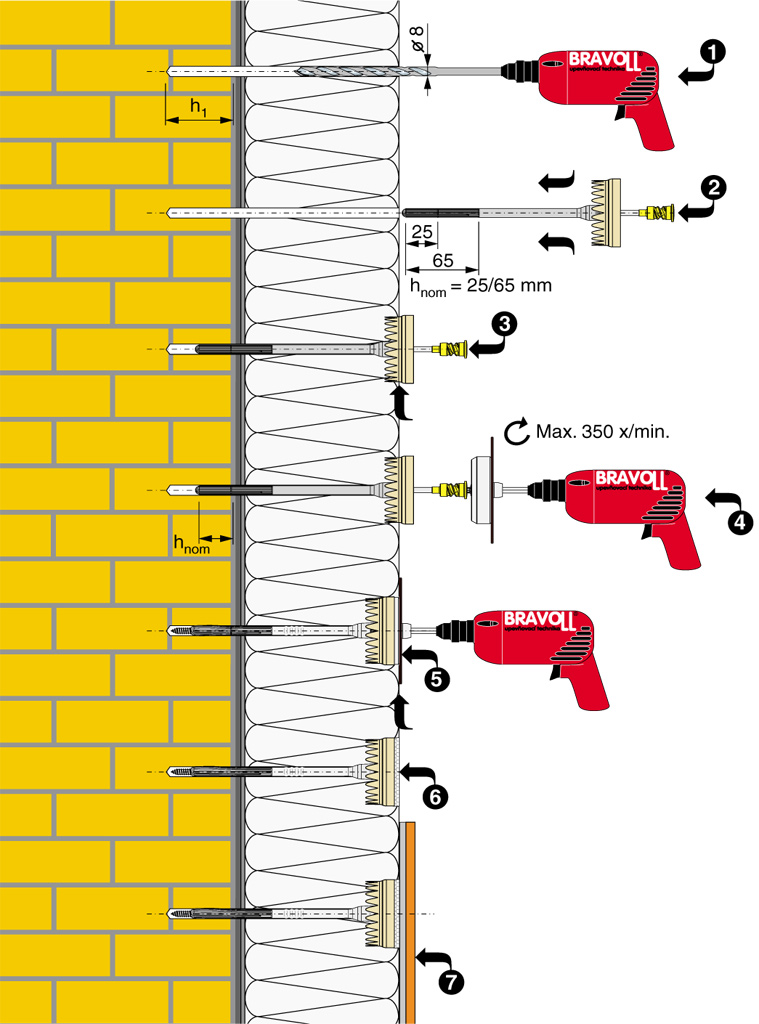

COUNTERSUNK INSTALLATION PTH-S

Assemble the countersunk accessory BRAVOLL ZP with the anchor, so that it comes in contact with the bottom of the anchor plate.
Insert the anchor and the BRAVOLL ZP accessory together into the drilled hole. Gently press the teeth into the insulation material.
Shall the anchor setting be difficult, it probably means that the used drill bit is worn (the drilled diamet er is too small or too much dust remains inside the hole). It is then necessary to use a new drill bit or better clean the hole. Hollow bricks and aerated concrete should only be drilled without hammering (ideally with a specially designed drill bit).
Installation must be done with the BRAVOLL MPS setting tool and an electrical screwdriver with electronic regulation (at a maximum speed of 350 rpm).
Drive the screw until the red depth plate of the BRAVOLL MPS setting tool comes into contact with the insulation material.
Insert the BRAVOLL IZ insulation cap in to the shaped cavity, and level it off with the insulation material surface.
When levelling out surface unevenness, make sure to respect the minimum embedment depth.
Installation must be done at a minimum temperature of 0° C.

Insert the anchor into the predrilled hole. If necessary, slightly push the anchor with the screwdriver. Shall the anchor setting be difficult, it probably means that the used drill bit is worn (the drilled diameter is too small or too much dust remains inside the hole). It is then necessary to use a new drill bit or better clean the hole. Hollow bricks and aerated concrete should only be drilled without hammering (ideally with a specially designed drill bit).
Installation must be done with the BRAVOLL ZPR setting tool and an electrical screwdriver with electronic regulation (recommended speed of 350 rpm).

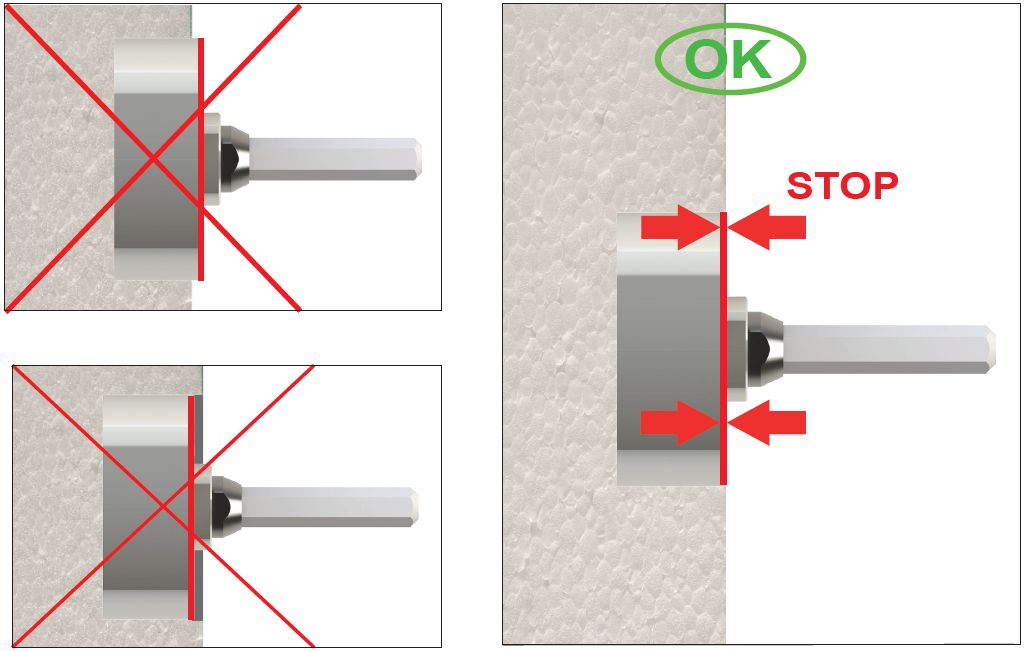

Drive the screw until the surface of BRAVOLL ZPR with red narrows and „STOP“ comes to the level of the surface of insulation material.
Insert the BRAVOLL IZ insulation cap in to the shaped cavity, and level it off with the insulation material surface.
When levelling out surface unevenness, make sure to respect the minimum embedment depth.
Installation must be done at a minimum temperature of 0 °C.
