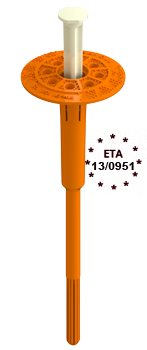

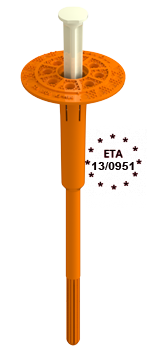

BRAVOLL® PTH-EX
DESCRIPTION
Steel nail hammer-in anchor for fixing explanded polystyrene (EPS) and mineral wool insulation boards in external wall systems (ETICS).
SUITABLE FOR
| A | B | C | D |
 |
 |
 |
 |
| concrete |
solid bricks |
hollow bricks | lightweight concrete |
FEATURES
- One-piece expansion pin for easy setting
- Special deformation area for a perfect finish
- Low thermal conductivity
- Low embedment depth - quick drilling
- High pull-out values - lower quantity of anchors per m²
- Special plate surface for optimum render adhesion
- Suitable for high thickness insulation boards
- Premounted anchor
- Can be used in connection with the extension washers BRAVOLL® IT PTH
TECHNICAL DATA
- European Technical Approval: ETA 13/0951
- Technical guidelines: ETAG 014
- Base material categories acc. to ETAG014: A, B, C, D
- Anchor diameter: 8 mm
- Washer diameter: 60 mm
- Drilling diameter: 8 mm
- Minimum embedment: 25 mm
- Minimum drilling depth: + 10 - 15 mm
- Point thermal transmission χ: 0.001 W/K
- Anchor plate load resistance: 1.4 kN
- Anchor plate stiffness: 0.6 kN/mm
TECHNICAL FEATURES
|
Base materials |
|
Description |
Characteristic load resistance NRk (kN) |
|
A |
|
Concrete C12/15 |
0.9 |
|
A |
Concrete C16/20 – C50/60 |
1.2 |
|
|
B |
|
Solid bricks |
0.9 |
|
B |
Solid sand-lime bricks |
0.9 |
|
|
B |
Hollow blocks |
0.75 |
|
|
C |
|
Hollow bricks |
0.6 |
|
C |
Hollow bricks acc. to ÖNORM B6124 |
0.75 |
|
|
D |
|
Lightweight concrete |
0.6 |
|
Minimum edge distance Cmin (mm) |
100 |
||
|
Minimum spacing Smin (mm) |
100 |
||
|
Minimum thickness of member h (mm) |
100 |
||
LENGTH RANGE
|
BRAVOLL® Product type |
Code |
Total length mm |
Pcs per carton |
Pcs per pallet |
|
PTH-EX 135 |
12011 |
135 |
200 |
7,200 |
| PTH-EX 155 |
12012 |
155 |
100 |
4,200 |
|
PTH-EX 175 |
12013 |
175 |
100 |
4,200 |
|
PTH-EX 195 |
12014 |
195 |
100 |
4,200 |
|
PTH-EX 215 |
12015 |
215 |
100 |
3,600 |
|
PTH-EX 235 |
12016 |
235 |
100 |
3,600 |
|
PTH-EX 255 |
12017 |
255 |
100 |
3,600 |
|
PTH-EX 275 |
12018 |
275 |
100 |
3,600 |
|
PTH-EX 295 |
12019 |
295 |
100 |
3,600 |
|
PTH-EX 315 |
12020 |
315 |
100 |
3,600 |
ANCHOR LENGTH CALCULATION
|
BRAVOLL® Product type |
Total length La (mm) |
Max. ins. thickness hd (mm) |
Max. ins. thickness hd (mm) |
|
|
|
Newbuild 1) |
Renovation 1) |
|
Base material categories |
A, B, C, D |
||
|
PTH-EX 135 |
135 |
100 |
80 |
|
PTH-EX 155 |
155 |
120 |
100 |
|
PTH-EX 175 |
175 |
140 |
120 |
|
PTH-EX 195 |
195 |
160 |
140 |
|
PTH-EX 215 |
215 |
180 |
160 |
|
PTH-EX 235 |
235 |
200 |
180 |
|
PTH-EX 255 |
255 |
220 |
200 |
|
PTH-EX 255 |
255 |
240 |
220 |
|
PTH-EX 275 |
275 |
260 |
240 |
|
PTH-EX 295 |
295 |
280 |
260 |
|
PTH-EX 315 |
315 |
300 |
280 |
- 1) for 25mm embedment and 10 mm mortar glue (a2)
- 2) for 25mm embedment, 20 mm old render (a1) and 10 mm mortar glue (a2)
ACCESSORIES
BRAVOLL® IT PTH 100
BRAVOLL® IT PTH 140
