INSTALLATION PTH-EX

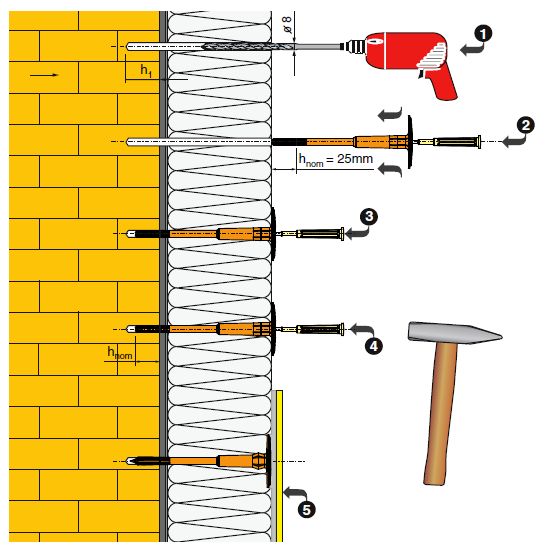

• Drill a hole through the insulation board to the right diameter. Hollow bricks should be drilled without hammering (ideally with aspecially designed drill bit).
• Insert the anchor into the hole with the anchor plate flush in contact with the insulation material. Slightly hammer the anchor plate in order to push it between 0 and 2 mm under the insulation material surface.
• If the anchor is difficult to set, it probably means that the used drill bit is worn (the drilled diameter is too small or the dust remains inside the hole). It is then necessary to use a new drill bit or better clean the hole.
• Hammer the head of the pin until it becomes flush with the anchor plate.
• A 800g hammer is recommended to perform an optimal installation.
• Within 6 weeks the anchors should be covered by the other ETICS components (for UV protection).
• When levelling surface make sure to respect the minimum embedment depth.
• Installation must be done at a temperature > 0°C.
