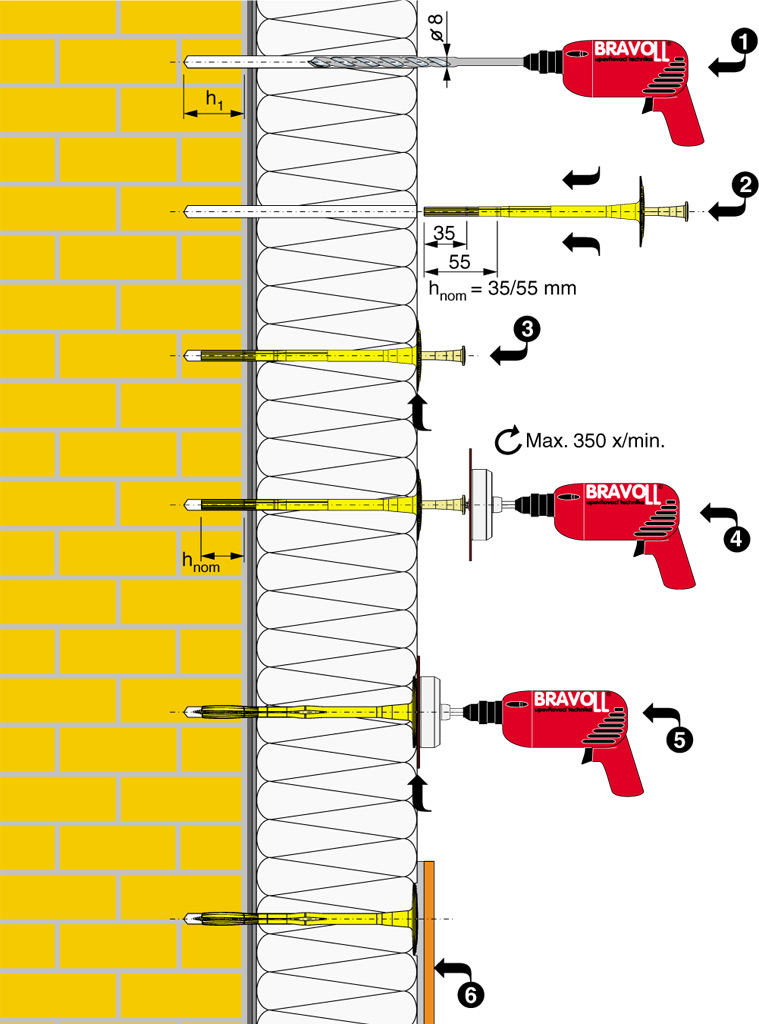

SURFACE INSTALLATION PTH-SX

Drill a hole, insert the anchor in ensuring that the plate is fully in contact with the insulation material. If necessary slightly push the anchor with the screwdriver.
Shall the anchor setting be difficult, it probably means that the used drill bit is worn (the drilled diameter is too small or too much dust remains inside the hole). It is then necessary to use a new drill bit or better clean the hole. Hollow bricks and aerated concrete should only be drilled without hammering (ideally with a specially designed drill bit).
Installation should be performed with an electrical screwdriver (max. 350 rpm, ideally with electronic regulation) and the setting tool BRAVOLL MPS (Torx 30).
Stop screwing when the anchor plate gets flush or between 0 and 2mm below the surface of the insulation material.
Within 6 weeks the set anchors should be covered by the other ETICS components (for UV protection).
When levelling out surface unevenness, make sure to respect the minimum embedment depth.
Installation must be done at a minimum temperature of 0° C.

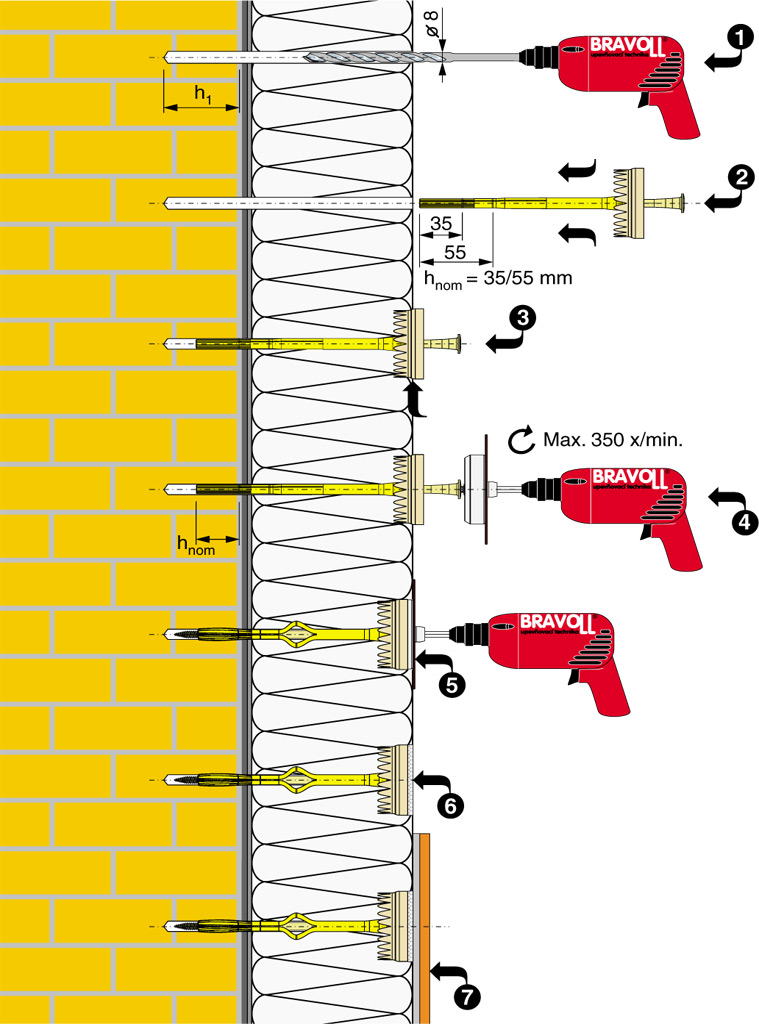

COUNTERSUNK INSTALLATION PTH-SX

Assemble the countersunk accessory BRAVOLL ZP with the anchor, so that it comes in contact with the bottom of the anchor plate.
Insert the anchor and the BRAVOLL ZP accessory together into the drilled hole. Gently press the teeth into the insulation material.
Shall the anchor setting be difficult, it probably means that the used drill bit is worn (the drilled diameter is too small or too much dust remains inside the hole). It is then necessary to use a new drill bit or better clean the hole. Hollow bricks and aerated concrete should only be drilled without hammering (ideally with a specially designed drill bit).
Installation must be done with the BRAVOLL MPS setting tool and an electrical screwdriver with electronic regulation (at a maximum speed of 350 rpm).
Drive the screw until the red depth plate of the BRAVOLL MPS setting tool comes into contact with the insulation material.
Insert the BRAVOLL IZ insulation cap in to the shaped cavity, and level it off with the insulation material surface.
When levelling out surface unevenness, make sure to respect the minimum embedment depth.
Installation must be done at a minimum temperature of 0° C.

Insert the anchor into the predrilled hole. If necessary, slightly push the anchor with the screwdriver. Shall the anchor setting be difficult, it probably means that the used drill bit is worn (the drilled diameter is too small or too much dust remains inside the hole). It is then necessary to use a new drill bit or better clean the hole. Hollow bricks and aerated concrete should only be drilled without hammering (ideally with a specially designed drill bit).
Installation must be done with the BRAVOLL ZPR setting tool and an electrical screwdriver with electronic regulation (recommended speed of 350 rpm).
Drive the screw until the surface of BRAVOLL ZPR with red narrows and „STOP“ comes to the level of the surface of insulation material.
Insert the BRAVOLL IZ insulation cap in to the shaped cavity, and level it off with the insulation material surface.
When levelling out surface unevenness, make sure to respect the minimum embedment depth.
Installation must be done at a minimum temperature of 0 °C.
