BRAVOLL® HIT M
DESCRIPTION

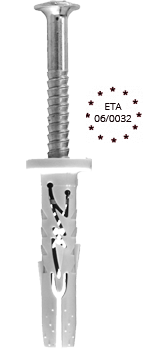

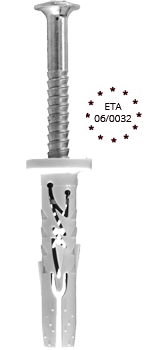

Hammer-in anchor for fixing base profiles as part of ETICS systems.
The anchor is made of a polyamide body with flat collar and galvanized screw nail, that can be unscrewed if necessary (Pz 2 shape).
SUITABLE FOR
| A | B | C |
 |
 |
 |
| concrete |
solid bricks |
hollow bricks |
FEATURES
- Anchor with European Technical Approval
- Very high performance in all solid and hollow materials
- Short and efficient anchoring zone
- Shallow embedment for quicker installation
- Quick and easy setting through the part to be fixed
- The wide and flat collar ensures a tight fixing
- Demountable
- The M shape of the expansion zone ensures a wide expansion in all materials
TECHNICAL DATA
- European Technical Approval: ETA 06/0032
- Technical guidelines: ETAG 014
- Base material categories acc. to ETAG014: A, B, C
- Anchor diameter: 5, 6 and 8 mm
- Minimum embedment: 20-30 mm
LENGTH RANGE
|
BRAVOLL® Product type |
Code |
Drilling diameter D0 |
Total length L (mm) |
Min. embedment Hnom (mm) |
Min. drilling depth h0 (mm) | Max. thickness to be fixed tfix (mm) | Pcs per box |
|
HIT M 6 x 30/5P |
050118 |
6 |
32 | 25 | 40 | 5 | 200 |
|
HIT M 6 x 40/12P |
0500119 | 6 | 39 | 25 | 40 | 12 | 100 |
|
HIT M 6 x 50/25P |
050121 | 6 | 52 | 25 | 40 | 25 | 100 |
|
HIT M 6 x 65/40P |
050122 | 6 | 67 | 25 | 50 | 40 | 100 |
|
HIT M 8 x 40/10P |
060090 | 8 | 42 | 30 | 50 | 10 | 50 |
|
HIT M 8 x 60/30P |
060091 | 8 | 62 | 30 | 50 | 30 | 50 |
|
HIT M 8 x 90/60P |
060092 | 8 | 92 | 30 | 50 | 60 | 50 |
|
HIT M8x110/80P |
060093 | 8 | 112 | 30 | 50 | 80 | 50 |
|
HIT M8x130/100P |
060094 | 8 | 132 | 30 | 50 | 100 | 50 |
|
|
|||||||
|
|
