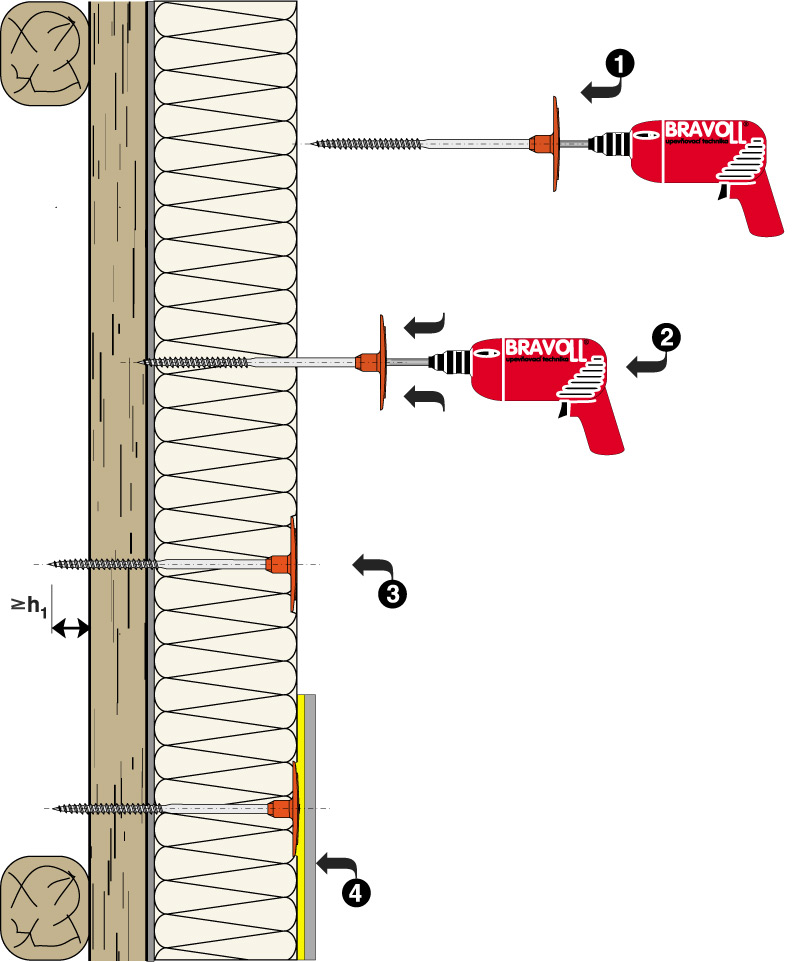

INSTALLATION TIT 60/5

• Place the washer and the screw onto a screwdriver with a Torx bit
• Pierce the insulation material with the screw down to the base material
• The installation should be performed with an electric screwdriver (maximum 350 rpm, ideally with electronic regulator) and the Torx-screw-cap.
• Stop screwing (maximum 350 rpm) when the washer becomes flush or between 0 and 2 mm below the surface of the insulation material.
• Within 6 weeks the anchors should be covered by the other ETICS components (for UV protection).
• Installation must be done at a temperature > 0° C.
